We are Manufacturer, Supplier, Exporter of Alarm Annunciators, Microprocessor Based Alarm Annunciators, Microcontroller Based Alarm Annunciators & our setup is situated in Pune, Maharashtra, India

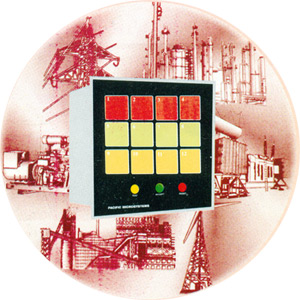

In the process there may be an alarm or trip condition. This alarm condition or trip condition occurs at a set point of a parameter in the process. To indicate this we manufacture highly efficient, accurate and intelligent Microprocessor Based machine called Alarm Annunciator. An Alarm Annunciator continuously scans these fault conditions, which may occur during any process operation. Fault condition is indicated by flashing of the LED based facia windows of Annunciator and by sounding the audio Hooter and the operator can take necessary corrective action.
Pacific Annunciator can scan all the parameters of the process to report a faulty condition if any. In other words there is no limitation on the number of inputs to the Annunciator & can be tailored according to the process. The Annunciator inputs are programmable and site selectable for NO(normally open) or NC
( normally close) sensing and are isolated optically. We have wide range of annunciator to fulfill different types of requirement.
"We have carried out Environmental and Electrical type tests from ETDC Pune and ERTL Mumbai on our Annunciator Unit."
Fault Alarm Inputs |
With or Without Potential. NO / NC Site selectable by DIP Switches Optically isolated. Interogation voltage 12 VDC |
Output |
One Potential Free NO contact of Relay for External Hooter. Contact Rating 230 VAC, 5A. 220 VDC, 2A. |
Push Buttons |
External TEST. ACCEPT, RESET Push Buttons of NO Type or Internal Built-in-Push Buttons. |
Window Indication |
By Super Bright RED LED'S Other Colors - GREEN, AMBER, YELLOW. Legends - Photo - Positive / Photo Negative. |
Number of Windows |
4, 6, 12, 16, 18, 20, 24, 30, 32, 36, 40, 48, 50, 60, 64, 70, 72, 88 Other nos. available on demand. |
Flexibility in Size |
To mach customer's cutout dimensions with different Row and Column combination. Separate facia and control unit can be provided as per requirement. |
Operating Sequence |
As per ISA Standard - Manual RESET, Auto RESET, First Up, Ring Back or any other specific sequence as per requirement. |
Input Aux Supply |
110, 230, 415 VAC +/- 10%, 24, 30, 48, 60 VDC +/- 20% 80 to 270 VDC - Universal Range. Power Consumption: Less than 0.9 W per window. |
Response Time |
10 Mill Seconds Approximately. |
Mounting |
Flush Panel Mounting or Wall Mounting Type. |
Environment |
0 to 60 degrees Centigrade Up to 95% RH non-condensing. |
External Connection |
Terminal Strip suitable up to 2.5 Sq. mm Wire. |
Enclosure |
Aluminium / MS Casing with Powder Coated Finish. |
The LED facias operate on 12 VDC to 24 VDC Voltages and can be driven by PLC or DCS systems.The LED facias can be made available in user-defined sizes besides the Standard size of 45 X 45 mm. The facias are also available with other inputs AC / DC Voltages.
